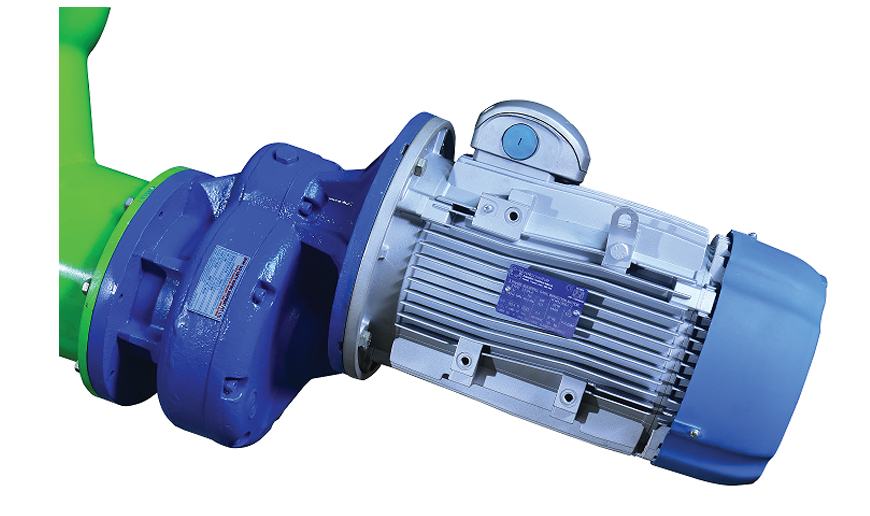

8. GEAR REDUCTION UNIT

• Heavy-Duty Design
• Oversized Gears

9. INTERMEDIATE STORAGE

• The least possible obstruction to the flow of material
• Low maintenance
• Perfect centering

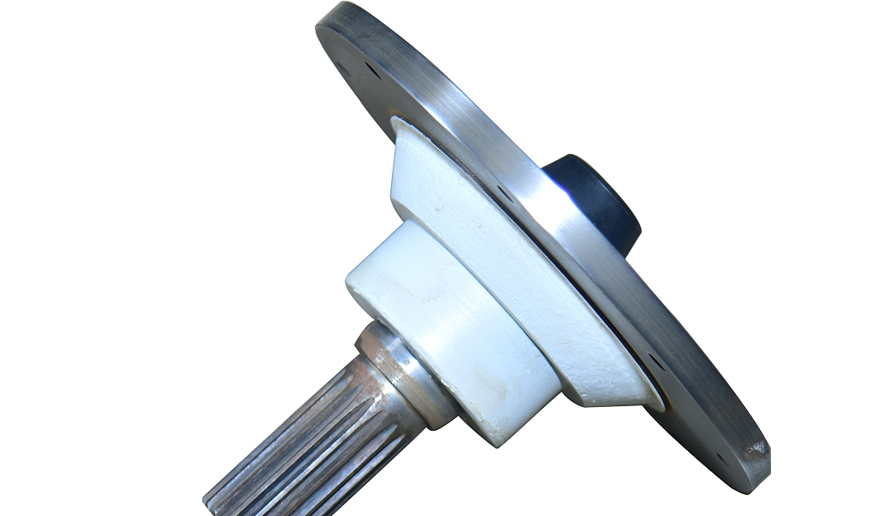

10. OUTLET BEARING WITH INVOLUTE SPLINE CONNECTION

• Quick installation
• Low maintenance

11. STANDARD INSPECTION HATCH

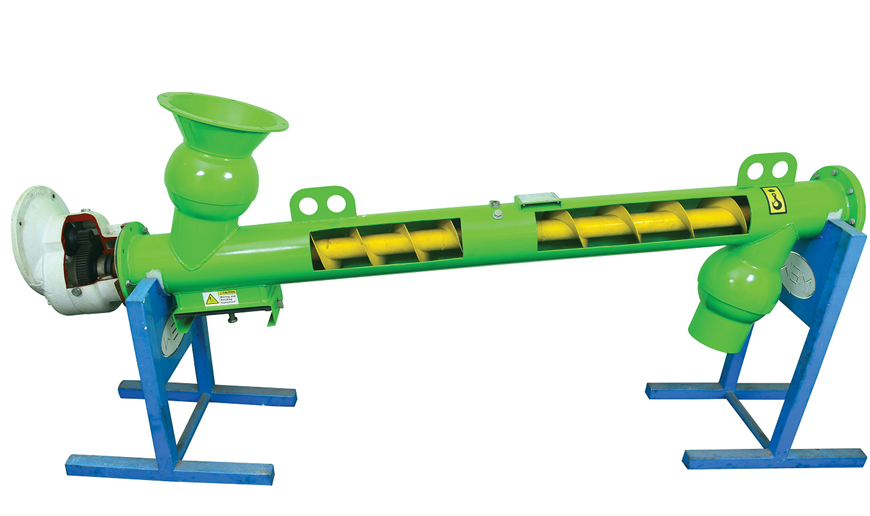

13. MODULAR CONSTRUCTION

• Transport friendly
• Easy on-site assembly

14. THROUGHPUT PERFORMANCE

• The performance specifications apply to professional Silo constructions and a professional one executed, perfectly functioning Air loosening system in the silo cone

16. FLOW DIAGRAM

• The flow rates indicated relate to a correct construction of the silo and fluidization of the cone.
• The flow rates are obtained with Portland cement, specific weight 1.13 t / m3. To get the flow rates indicated, it is essential to guarantee a constant flow of cement from the silo.

17. FLOW CHART

• The flow rates refer to augers that extract from silos built and fluidified in a way correct
• The flow rates refer to Portland cement with specific weight of 1.13 t / m3. To obtain the flow rates indicated above are essential a steady descent of the concrete into the silo and a homogeneous discharge of the silo cone
• Theoretical throughput rate Theoretical throughput
• Theoretical flow line
• Throughput rate depending on bulk density of cement
• Throughput depending on the cement Bulk weight
• Fields where the flow varies according to the weight cement specific
• Range in which the flow rate varies according to the specific weight of the cement
• Throughput rate not in proportion Throughput curve not proportional Area in which certain types of cement behave in a non-proportional way Zone in which certain cements behave in such a way not proportional
• Possible flushing of the cement Possible penetration of the cement Area where total or partial siphoning is PossibleArea of possible total or partial siphoning
